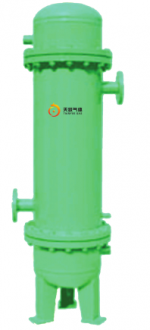

TYQ efficient cooler
product name: TYQ efficient cooler
Product number:SN20171018150326892
Update time:2017-08-29
Supply business home:
Views: 1019
The use of bimetallic finned tube for the condenser, in the same volume to improve the cooling area and the effect of high cooling efficiency, small size, wide range of applicable conditions.
Working pressure: 0.6 ~ 1.0Mpa (according to the requirements of 1.0 ~ 4.0Mpa)
Gas inlet temperature: ≤ 160 ℃ (air-cooled ≤ 120 ℃)
Gas outlet temperature: ≤ 42 ℃
Cooling water temperature: ≤ 32 ℃ (water-cooled)
Ambient temperature: ≤35 ℃ (air-cooled type)
Cooling water pressure: 0.25 ~ 0.4Mpa
Gas resistance drop: 0.02 ~ 0.4Mpa
